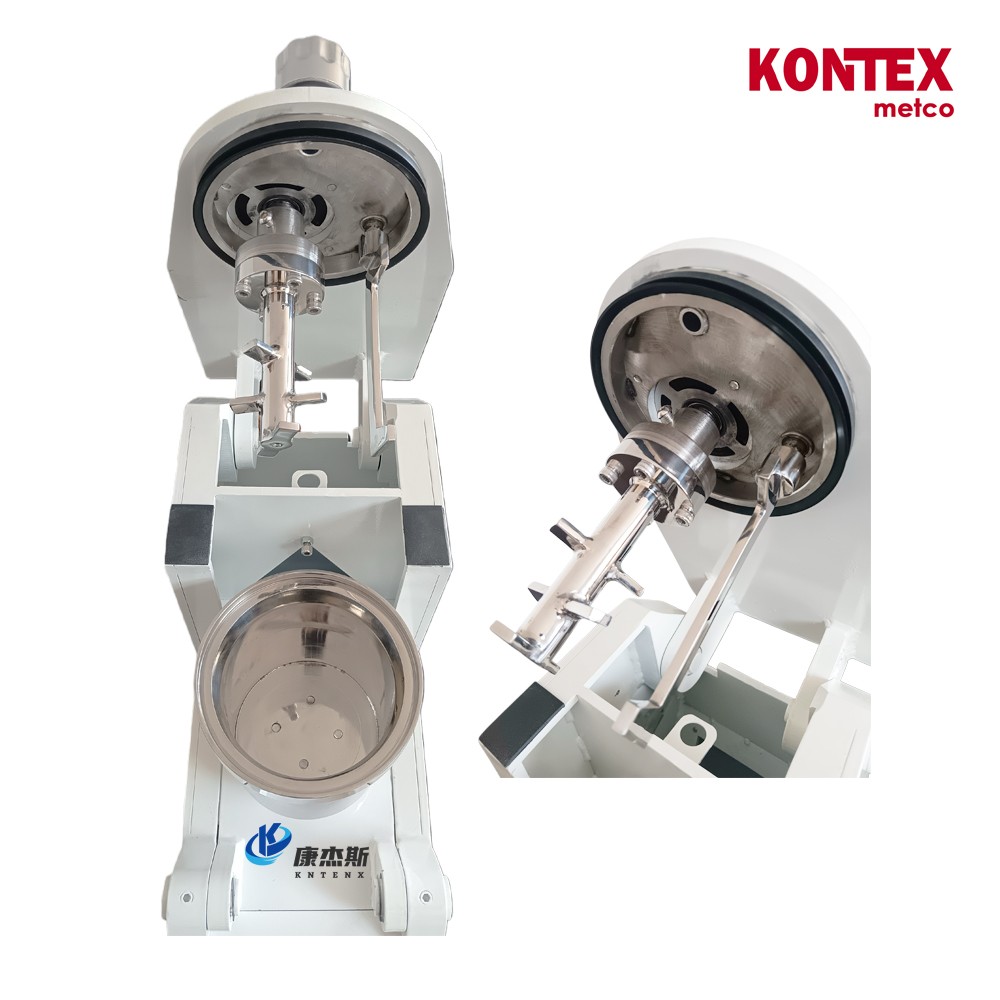

Kontex KH-1 1L Inclined-type mixing granulator

Intensive Mixer KH-1 – Tilt angle adjustment: 0°, 10°, 20°, and 30°
Touchscreen operation with display of:
Mixing tool speed: continuously adjustable in both directions, ranging from
2 to 30 m/s
- Mixing vessel offers two selectable speed levels (0.7
m/s or 1.4 m/s)
Mixing tool: Stainless steel star-shaped rotor
Suitable for use with a glovebox

EMAIL

Continuous intensive mixer-granulator for high-tonnage preparation of minerals, fertilizers and metallurgical raw materials, with working volumes from 3,000 L to 12,000 L and throughput designed for 24/7 operation. Kontex-class 3D counter-current mixing maintains 99.9% uniformity under continuous feed, and the adjustable tool speed allows the same unit to switch between fine granulation and coarse pelletizing up to 6 mm without equipment change. Granulation is completed within a 3-minute residence time, with PLC-controlled liquid addition and power consumption to achieve a stable granule size distribution. The design allows direct integration with downstream balling discs, sintering or roasting circuits; continuous or batch mode is selectable on the same platform. Application industries include iron ore and manganese pellet feed, continuous NPK fertilizer lines, large-scale catalyst carrier production, and mineral agglomeration. The heavy-duty sealed body is suitable for high-dust and negative-pressure environments; energy consumption is 35%–55% lower than that of conventional continuous granulation equipment.
Precision intensive mixer-granulator for catalysts, molecular sieves and porous oxide carriers, with working volumes from 10 L to 2,000 L. Kontex-class 3D counter-current mixing achieves 99.9% uniformity, uniformly coating ppm-level active additives onto every particle; the gentle shear profile protects fragile crystal structures from attrition—critical to molecular sieve and catalyst performance. Granulation produces mechanically stable spherical or cylindrical pellets in the 50 μm to 5 mm range, and adjustable shear force controls pore-structure retention and crush strength. Application industries include petrochemical catalysts, zeolite and molecular sieve beads, DeNOx/VOC oxidation catalysts, and porous ceramic catalyst supports. Optional Hastelloy bowl, impeller and valves resist chloride and acid corrosion; fine catalyst powders are handled under full containment.

intensive mixer

Kontex Intensive  Mixer/Granulator

——Specialized solutions for fine chemicals, catalysts/molecular sieves, and metallurgical pelletizing.


Energy consumption is 35%–55% lower than that of conventional equipment.

Capacities range from 1L for laboratory R&D up to 15 tons per batch for industrial production.

Suitable for materials in all forms: powders, slurries, granules, pastes, viscous liquids, etc..


I. General Core Advantages

  • 3D counter-current mixing: Forward bowl + reverse rotor = convection, shear, diffusion in one. Uniformity up to 99.9%, particle size 50μm–5mm.

  • 3-in-1 process: Dry mixing, wetting, and shear granulation in a closed chamber. Saves space, cuts transfer loss.

  • German-standard components: Siemens, Flender, etc. HARDOX or tungsten carbide contact surfaces – life several times longer; many units run 10+ years.

  • Intelligent PLC control: Touchscreen for speed, time, recipes – full traceability. Optional predictive maintenance gives real-time alerts, cuts downtime.



intensive mixer
intensive mixer

II. Specific Advantages for Catalyst & Molecular Sieve Industry

  • Trace dispersion: Additives at ppm levels uniformly coated on every particle – ensures batch-to-batch consistency.

  • Gentle mixing: Protects fragile crystal structures – ideal for molecular sieves, catalysts, R&D, and process optimization.

  • Hastelloy option: Bowl, impeller, chopper, valve available in Hastelloy – resists pitting/stress corrosion from HCl, H₂SO₄, chlorides.

  • Full scale: From 1L lab units to industrial tilting mixers – covers R&D, pilot, and production.




III. Specific Advantages for the Metallurgical & Pelletizing Industry

  • Uniform mixing & precision granulation – boosts tumbler strength and yield, cuts solid fuel consumption.

  • Heavy-duty steel body – built for 24/7 continuous high-torque operation.

  • Wear-resistant materials & sealed design – prevents dust ingress, adapts to negative pressure, extends maintenance intervals.

  • Continuous or batch mode – integrates seamlessly with downstream balling/roasting, or switches to batch for flexibility.


intensive mixer

Brand Commitment

Kontex: 20 years of deep industry expertise, exporting to over 30 countries worldwide. Co-drafter of China's national standard for intensive mixers. CE certified, with quality benchmarked against German standards.
